PortaBatch Portable Batching & Transfer System
Flexible Powder Handling—Engineered Around Your Process

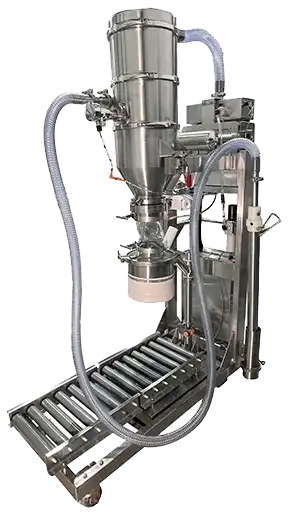

The IEDCO PortaBatch is a fully customizable, portable batching and transfer system designed to automate the movement and accurate dosing of powders from virtually any source to your desired container. Whether transferring from drums, super sacks, or existing process equipment, each PortaBatch system is engineered specifically to your application – ensuring optimal performance, safety, and efficiency.
Unlike off-the-shelf equipment, no two PortaBatch systems are exactly alike. Every design is tailored to your material characteristics, facility constraints, and production goals – delivering a solution that works seamlessly within your operation.
Why PortaBatch?
Many powder handling operations still rely on manual filling processes that are inefficient, inconsistent, and physically demanding. These methods often lead to:
- Poor ergonomics and operator fatigue
- Inconsistent batch weights
- Dust exposure and containment challenges
- Low throughput and productivity
The PortaBatch system addresses these issues by introducing a semi-automated, contained, and highly accurate batching solution. By integrating vacuum conveying with precision weighing and controlled discharge, PortaBatch dramatically improves both process efficiency and workplace safety.
How It Works

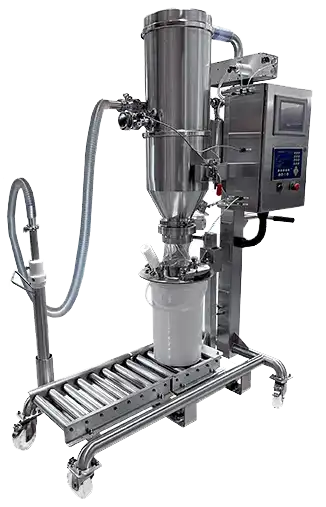

At its core, the PortaBatch system combines vacuum conveying technology with precision batching controls:
- Material Pickup
Powder is drawn directly from a drum, super sack, or other source using an operator-controlled feed wand. - Vacuum Conveying
A compressed air-driven vacuum pump transfers material into a collection vessel. This pneumatic design eliminates the need for motors and rotating equipment, making it ideal for hazardous or classified environments. - Material Collection & Control
The system uses level sensors to manage fill cycles automatically, ensuring consistent operation. - Accurate Batching
A sanitary rotary valve, vibratory feeder, or controlled discharge device meters product into a container positioned on a precision scale. - Contained Filling
An inflatable fill head seals to the container liner, minimizing dust and maintaining a clean, controlled transfer. - Repeatable Operation
Once the target weight is reached, the system resets and repeats the cycle – delivering consistent, repeatable batches.
This process enables operators to achieve high accuracy (typically within ±1%) while significantly reducing manual handling.
Key Features & Capabilities
Fully Custom Engineered
Every PortaBatch system is designed around your specific process requirements, including:
- Material type and flow characteristics
- Batch size and accuracy requirements
- Source and destination containers
- Facility layout and space constraints
Portable & Space-Efficient
Mounted on a mobile support frame with locking casters, PortaBatch systems can be easily repositioned within your facility – providing flexibility without sacrificing performance.
Pneumatic Vacuum Conveying
- Ideal for hazardous or explosive environments
- No motors or rotating components
- Quiet, energy-efficient operation
- Minimal maintenance requirements
Precision Weighing & Control
Integrated scale systems and programmable controls allow for:
- High batch accuracy
- Multiple recipes for different products or container sizes
- Automated sequencing with minimal operator input
Contained, Dust-Free Transfer
The use of drum covers, sealed connections, and inflatable fill heads ensures:
- Reduced dust emissions
- Improved operator safety
- Cleaner work environments
Sanitary & Easy to Clean
- 316 stainless steel product contact surfaces
- Tool-less disassembly for fast cleaning
- FDA-acceptable materials available for food and pharmaceutical applications
Typical Applications
The versatility of the PortaBatch system makes it suitable for a wide range of industries and applications:
- Food and nutraceutical powders
- Pharmaceutical ingredients
- Fine chemicals
- Additives and specialty powders
Whether you are filling small containers, bags, or bulk packaging, PortaBatch adapts to your process.
Designed for Real-World Performance
The versatility of the PortaBatch system makes it suitable for a wide range of industries and IEDCO PortaBatch systems are built with practical operation in mind. Features such as adjustable feed wands, flow aids (vibrators), and modular conveyor designs ensure reliable handling – even with challenging materials.
Because powder behavior can vary widely, each system is engineered to accommodate factors such as density, flowability, and potential agglomeration. The result is a system that performs consistently in real production environments, not just under ideal conditions.
A Smarter Approach to Batching
The PortaBatch system is more than just equipment, it’s a process improvement tool. By replacing manual handling with a controlled, repeatable system, you gain:
- Enhanced containment and cleanliness
- Increased throughput and efficiency
- Improved batch consistency and quality
- Reduced labor strain and ergonomic risk
